1、 Why to use anti-static table mats

An anti-static table mat is a necessary item for the countertop of an anti-static workshop. It can achieve a uniform electric potential and release static electricity for the anti-static equipment, tools, instruments, meters, etc. that come into contact with the human body and the countertop. In addition, anti-static table mats can also prevent static sensitive devices (SSDs) from being affected by electrostatic discharge phenomena such as friction and electrification, which can provide excellent electrostatic protection.

Anti-static table mats must be connected to anti-static grounding wires during using, in order to effectively discharge static electricity and ensure product quality without any problems.

The biggest advantage of the new anti-static table mat is its convenience to be laid, moved, carried, and replaced.

2. Material, structure, and characteristics of anti-static table mats

[Material]

High elastic PVC + nitrile rubber + carbon black

[Structure]

A double layered structure with a total thickness of 2mm, composed of a 1:1 ratio of the upper and lower layers;

The upper surface layer is an anti-static layer (i.e., an electrostatic dissipation layer) with a thickness of 1.0mm and a resistance range of 10 ^ 6-10 ^ 9 Ω;

The bottom layer is a black conductive layer. Thickness 1.0mm, resistance range 10 ^ 3-10 ^ 5 Ω;

Uniform distribution of resistance, volume resistance ≤ 10 ^ 8 Ω, and electrostatic discharge time of 0.2 seconds;

[Characteristics]

Anti-static protection, buffer protection, high temperature resistance, wear resistance, acid and alkali resistance, high elasticity and pressure resistance, easy to carry.

3、 Colors and specifications of commonly used anti-static table mats

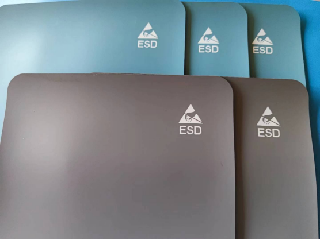

[Regular color] Dark gray, light coffee, lake blue

[Conventional thickness] 2mm (anti-static upper layer 1.0mm, conductive lower layer 1.0mm)

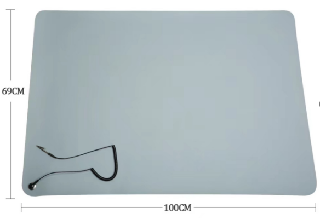

[Regular size] 900 * 600mm, 1000 * 690mm, or customized

[Table mat weight] 2.5Kg/m ²

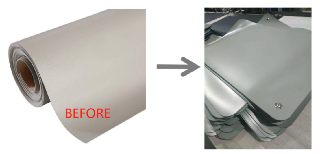

[Table cushion corners] Regular cut round edges or right angle edges

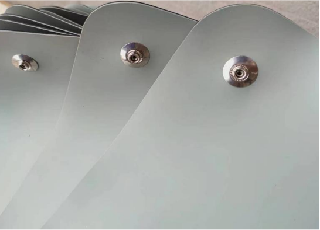

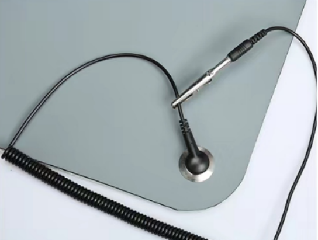

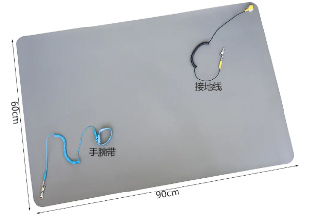

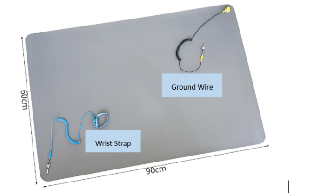

[Optional] Screen printed anti-static identification; Equipped with ground buckle and ground wire; Equipped with wrist buckle and wrist strap.

4. Usage scenarios for anti-static table mats

Anti-static workbench, maintenance desk, laboratory, microelectronic production line, semiconductor production workshop
