ESD mats are often used in anti-static workshops, laboratories, or areas with strict anti-static requirements. So how to choose an ESD mat that is more suitable?
Therefore, three representative ESD mats are recommended, hoping to be helpful to those in need.

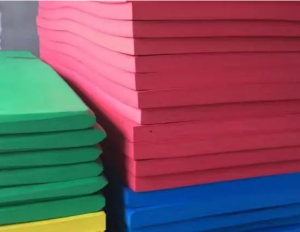

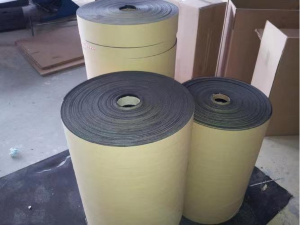

No. 1__ESD EVA Foam Mat
This product is produced through polyethylene foamed, It is the lightest in weight and shock-absorbing;
The surface resistivity and volume resistivity are consistent;
ESD EVA Foam Mat can be customized for processing, with a thickness range of 1mm to 200mm;
Applicable to: Shelf supports, Box cushioning pads, Tray cushioning pads,...

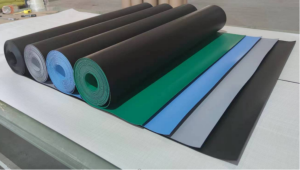

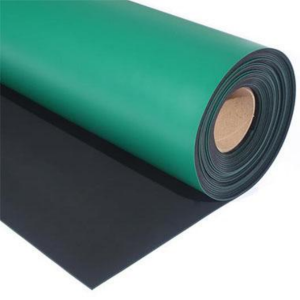

No. 2__ESD Mat
The main material is composed of Nitrile Rubber and PVC, which is wear-resistant and durable;
Upper layer resistivity：10^6-10^9Ω；
Lower layer Resistivity：10^3-10^5Ω；
Volume Resistivity：10^7-10^8Ω
The length of ESD Mat can be customized, but the width cannot exceed 1200mm, and the thickness is generally 2mm；
Color：Green /Blue /Grey and Black

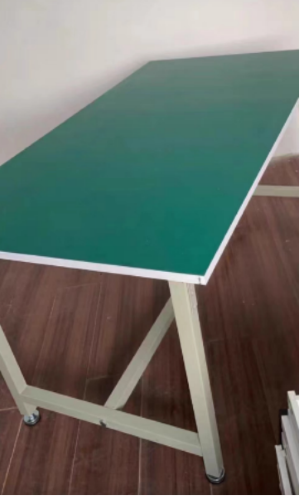

Applicable to: Desktop, Countertop, Shelf surface,...

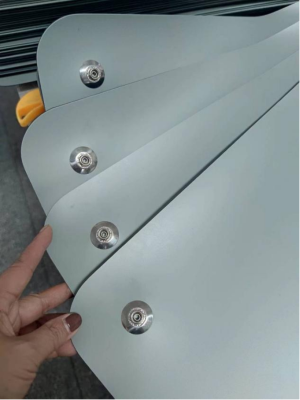

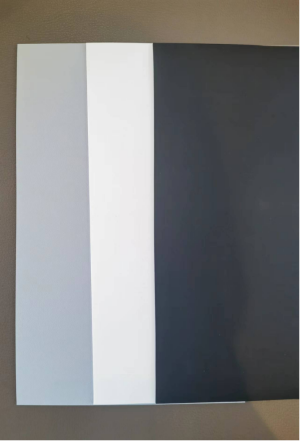

No.3__Halogen-free ESD Silicone Rubber Mat
The main ingredient is silicone, which is halogen-free, heat-resistant, scratch resistant, and durable;
Resistivity：10^3-10^6Ω；
The length of the Halogen free ESD Silicone Rubber Mat can be customized, with a width not exceeding 1200mm and a fixed thickness of 1mm or 1.5mm；Color：Green /Blue /Grey and Black
Color：Grey /White and Black
Suitable for: High-end anti-static workshops, Dust-free workshops, High-temperature resistant laboratories, etc.
