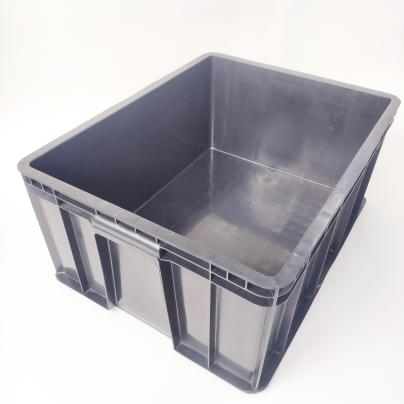

The anti-static injection molding turnover box is made of polypropylene (PP) as the substrate, with carbon powder added. The carbon powder can conduct current and has strong mechanical properties. It is made of this composite material through traditional injection molding process. Both surface resistance and overall resistance can be stable between 10 ^ 4-10 ^ 9 Ω; Therefore, anti-static injection molding turnover boxes can effectively release the static charges accumulated on the surface of objects, so that they do not generate charge accumulation and high potential difference. In addition, they also have toughness, wear resistance, moisture-proof, and anti-corrosion properties, and are widely used in the turnover loading, packaging, storage, and transportation of electronic devices and product production processes. The following set of pictures shows the conventional appearance of the anti-static injection molding turnover box.

As is well known, the production of injection molding boxes requires a set of expensive molds, and the larger the box, the more expensive the mold cost. The anti-static injection molding turnover box is also completed through mold production. Once the mold is fixed, the appearance of the box is fixed, and the service life of the box varies from 1 to 3 years. In order to expand its applicability, we can try changing the internal layout of the box to improve its tolerance for products of different sizes. So anti-static injection molding tool cards became its best choice.

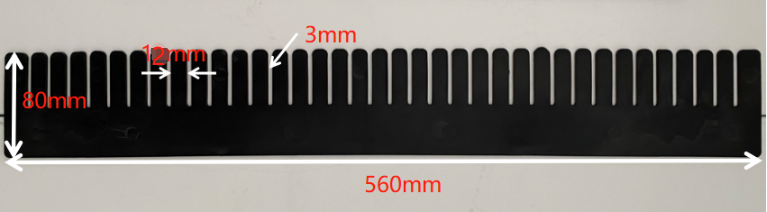

Anti static injection molding partition with a pitch of 15mm (12+3mm) each, the following two types of partitions are suitable for“600*400mm”boxes:

Length 560mm, thickness 2.5mm, height 80mm;

Length 560mm, thickness 3.0mm, height 100mm;

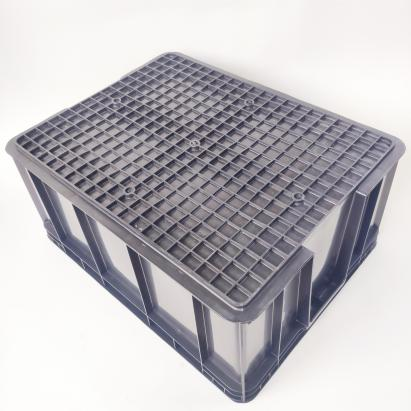

If the anti-static injection molding turnover box is deep enough, anti-static sandwich panels can also be used for separation to achieve multi-layer stacking;

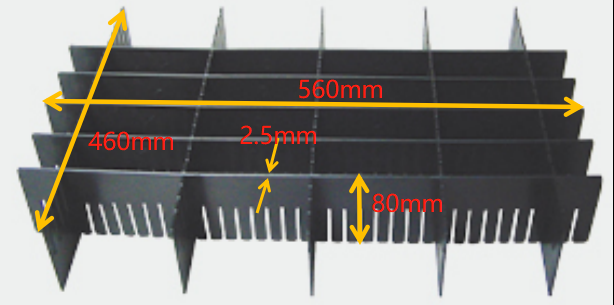

Schematic diagram of assembly of Anti-static injection molding partitions with a height of 80mm

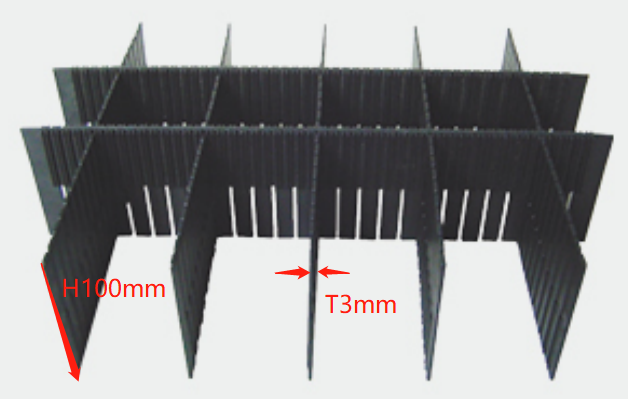

Schematic diagram of assembly of Anti-static injection molding partitions with a height of 100mm

Schematic diagram of the assembly of Anti-static injection molding turnover box and Anti-static injection molding partitions
