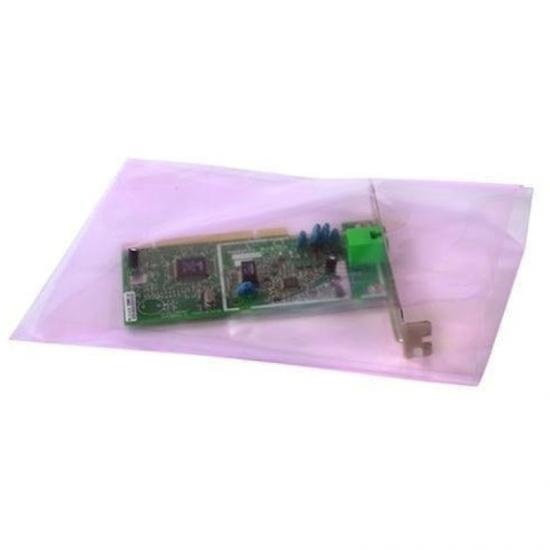

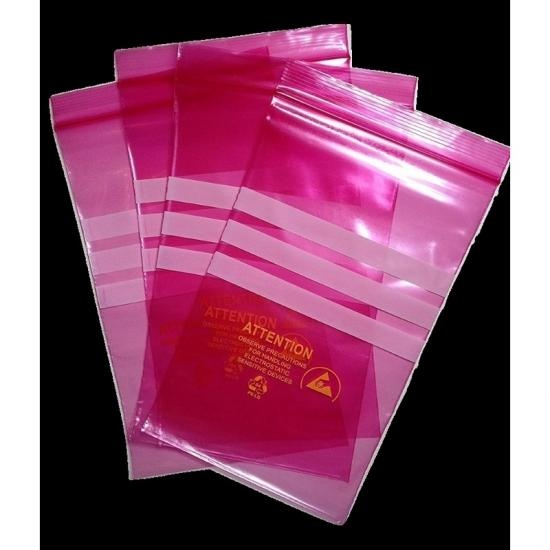

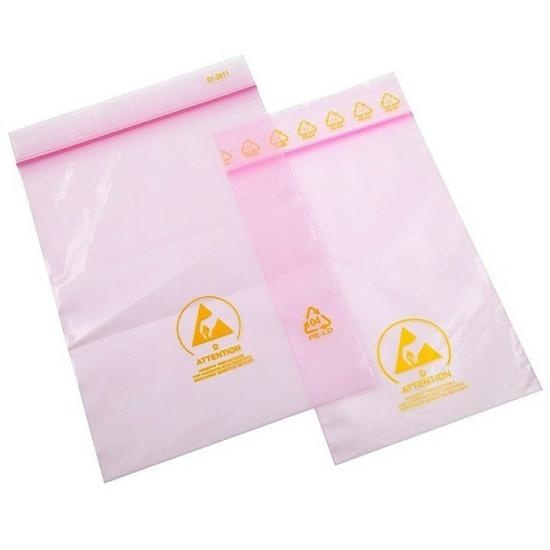

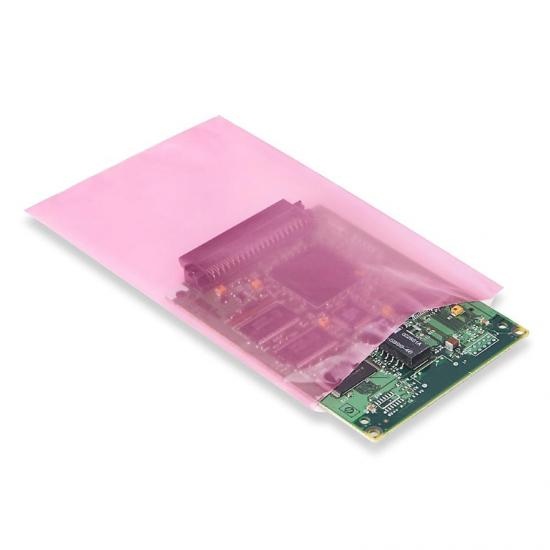

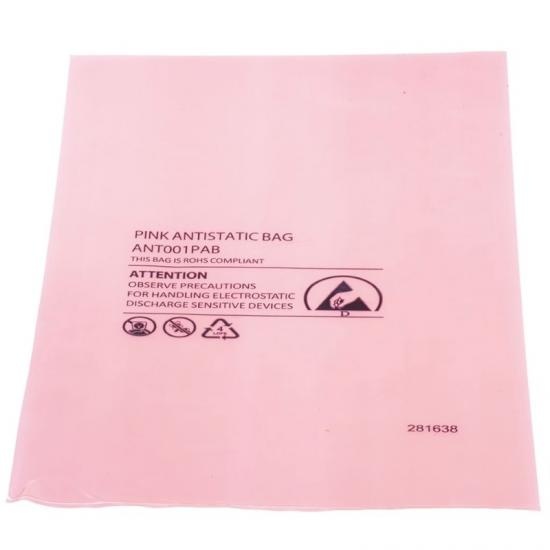

Pink & Blue ESD-Safe Bags for ICs, PCBs & Sensitive Components (10⁹–10¹¹ Ω/sq | Bottom-Seal & Side-Weld | 50×80mm to 600×900mm)
Our anti-static PE bags are manufactured from a blend of LDPE and LLDPE with a proprietary anti-static additive, providing reliable static charge dissipation for the safe packaging and handling of electrostatic-sensitive devices. The anti-static agent migrates to the film surface to form a conductive moisture-absorbing layer, offering effective charge dissipation under normal ambient conditions.

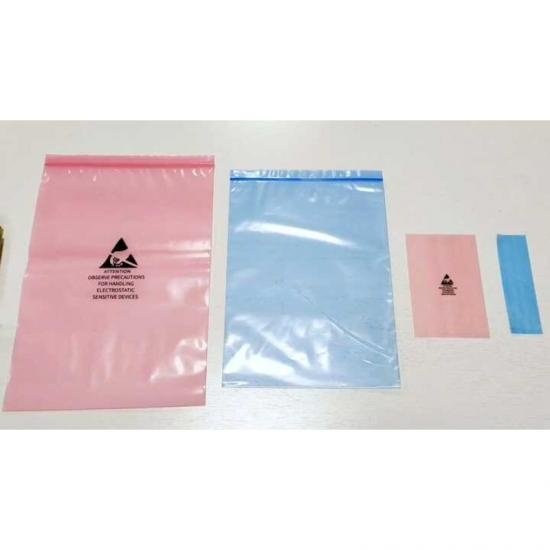

Available in two standard colors — pink and blue — these bags are immediately recognizable on any production floor as ESD-safe packaging. The color coding helps operators quickly distinguish anti-static bags from ordinary PE bags, reducing the risk of accidental use of non-ESD packaging. Pre-made in a wide range of standard sizes from 50×80mm to 600×900mm, with custom sizes available on request.
Standard Colors
|
Color |
Status |
Note |
|
Pink |
Standard (in stock) |
Industry-standard ESD color; widely recognized |
|

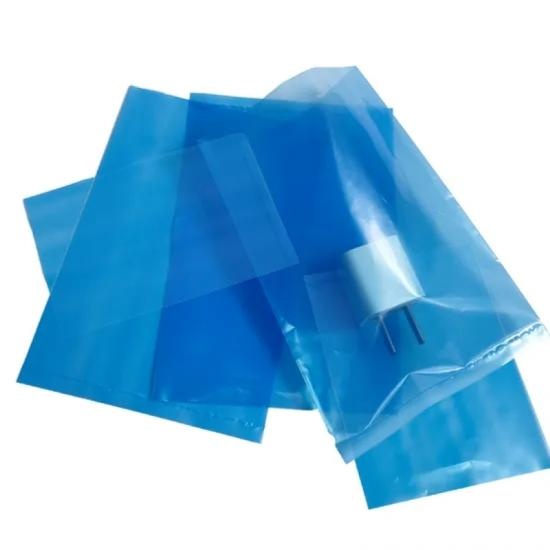

Blue |
Standard (in stock) |
Alternative ESD color; easy visual differentiation |
|
Transparent |
Available on request |
For visual inspection without opening |
|
Red |
Available on request |
For high-visibility warning applications |
Technical Specifications
|
Property |
Specification |
|
Material |
LDPE / LLDPE blend with anti-static additive |
|
Surface Resistivity |
10⁹ – 10¹¹ Ω/sq (at 23°C, 50% RH, per ASTM D257) |
|
Static Decay Time |
< 2.0 s (5,000V → 50V, per ANSI/ESD STM 11.11) |
|
Residual Voltage |
< 30V (per ANSI/ESD S541) |
|
Standard Thickness |
0.05 / 0.075 / 0.1 mm (customizable) |
|
Available Sizes |
50×80 mm to 600×900 mm (custom sizes available) |
|
Seal Type |
Bottom-seal / Side-weld |
|
Thickness Tolerance |
± 10% (per ASTM D374) |
|
Tensile Strength (MD/TD) |
≥ 12 MPa (per ASTM D882) |
|
Elongation at Break (MD/TD) |
≥ 400% (per ASTM D882) |
|
Puncture Resistance |
5 – 10 N (per ASTM D4833) |
|
Heat Seal Temperature |
130°C – 170°C |
|
Printing |
ESD warning symbol, company logo, custom text (optional) |
|
Anti-Static Shelf Life |
12 months from date of manufacture (stored at <40°C, 30–70% RH) |
|
Humidity Dependence |
Optimal performance at ≥ 30% RH |
Note: Anti-static performance is humidity-dependent. In very low humidity environments (< 20% RH), consider our Conductive PE Film (YF-CPE Series) for humidity-independent protection.
Key Features
• Color-coded ESD safety — Pink and blue standard colors for instant visual identification on the production floor
• Cost-effective ESD protection — Ideal inner packaging solution for moderate-sensitivity components
• Excellent mechanical strength — LDPE/LLDPE blend provides superior elongation (≥400%) and puncture resistance
• Wide size range — From 50×80mm (small ICs) to 600×900mm (large PCB assemblies), plus custom sizes
• Flexible seal options — Bottom-seal or side-weld; compatible with heat sealers, adhesive tape, or zip-lock
• Custom printing — ESD warning symbols, PE-LD recycling marks, part numbers, barcodes
• 12-month anti-static shelf life — Reliable performance when stored properly in original packaging
• Compliant — ANSI/ESD S541, IEC 61340-5-3, ASTM D257, RoHS, REACH
Applications
• Packaging of ICs, PCBs, and electronic modules
• Inner lining for static shielding bags or moisture barrier bags
• Storage and handling of SMT parts and assemblies
• General-purpose ESD-safe packaging for consumer electronics
• Field service kits and MRO component storage
• Hard drive and semiconductor device packaging
• Cleanroom component bagging
Conductive PE Film vs. Anti-Static PE Bags — Which Do You Need?
|
Consideration |
Choose Conductive PE Film |
Choose Anti-Static PE Bags |
|
ESD sensitivity level |
High (Class 0 / Class 1) |
Moderate (Class 2 / Class 3) |
|
Environment humidity |
Low or variable (< 30% RH) |
Normal (> 30% RH) |
|
Packaging format |
Roll film, tubing, die-cut parts |
Pre-made bags, manual packing |
|
Production volume |
High (automated lines) |
Any (manual or semi-auto) |
|
Cost priority |
Performance-first |
Budget-conscious |
|
Shelf life concern |
Permanent |
12 months (re-order cycle) |
Call to Action
Need samples or a bulk quote? Tell us your bag size, thickness, and quantity — we’ll respond within 24 hours.
