Our black conductive PE film is manufactured from carbon-black-loaded polyethylene, providing permanent, volume-conductive ESD protection that is completely independent of ambient humidity. Unlike surface-treated anti-static films that rely on moisture to dissipate charge, the conductive carbon network is uniformly embedded throughout the entire material matrix — ensuring consistent electrical performance over the full product lifetime.

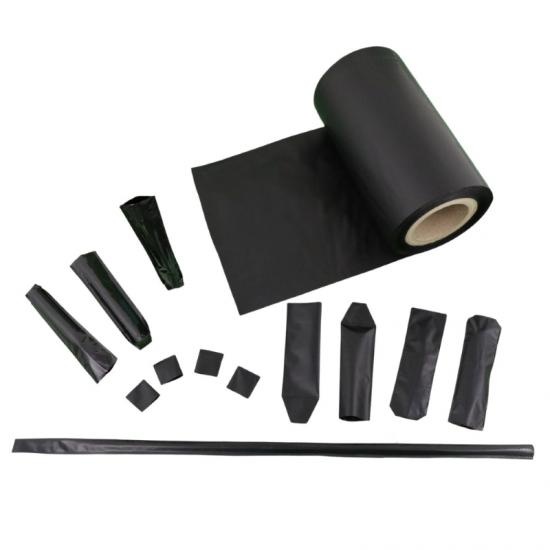

Available in two forms — single/double-wound roll film and seamless tubing — the product is designed for high-volume automated packaging lines, die-cutting operations, and manual packing stations for electrostatic-sensitive devices (ESDs). The tubing format can be cut and heat-sealed to any length on-site, offering maximum flexibility for irregular-shaped components.
Available Forms
|
Form |
Description |
Typical Use |
|

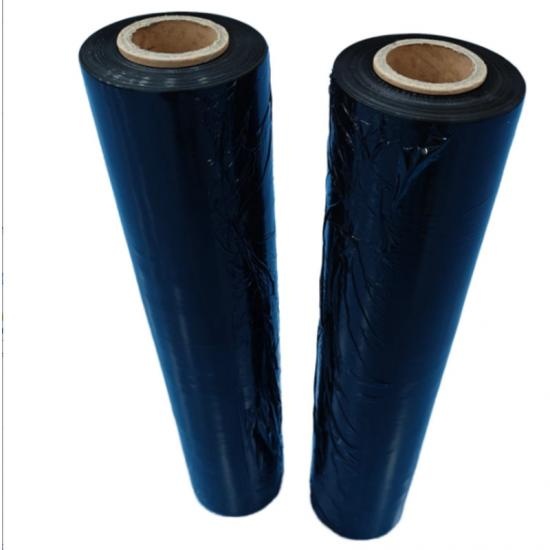

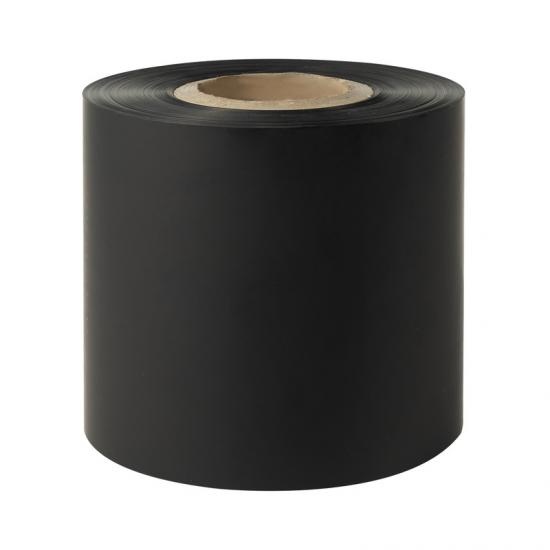

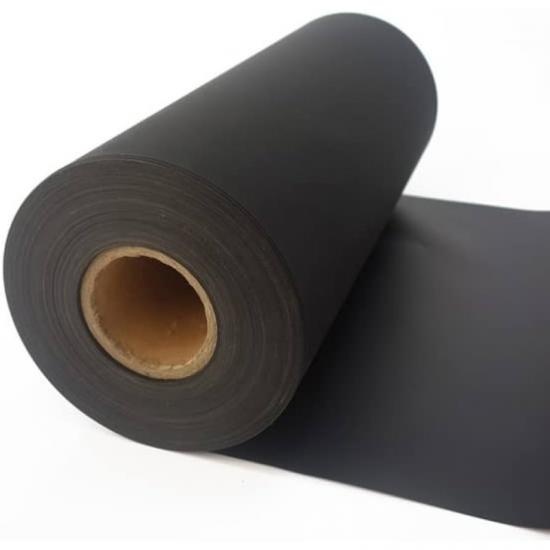

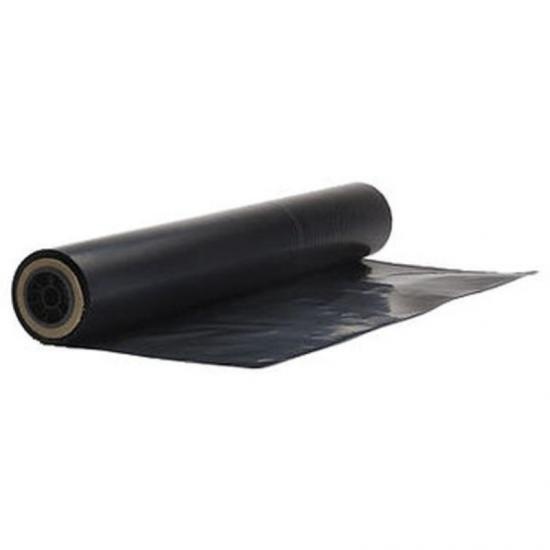

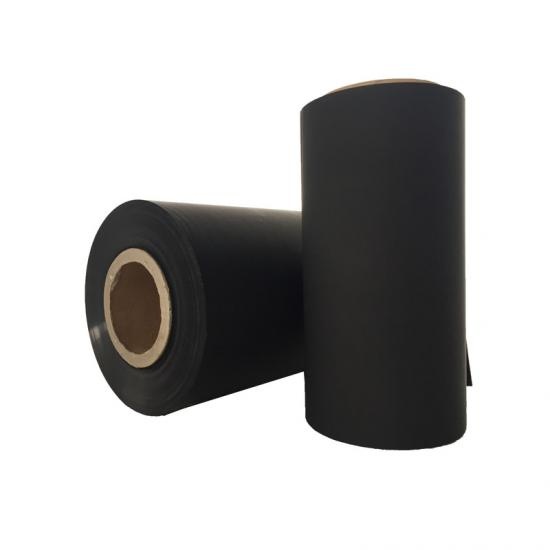

Roll Film (Single-Wound) |
Flat sheet on core, width up to 1000mm |
Die-cutting liners, spacers, wafer separators, tray liners |
|
Roll Film (Double-Wound / C-Fold) |
Folded sheet on core, opens to double width |
Wide-format wrapping, interleaving sheets |
|

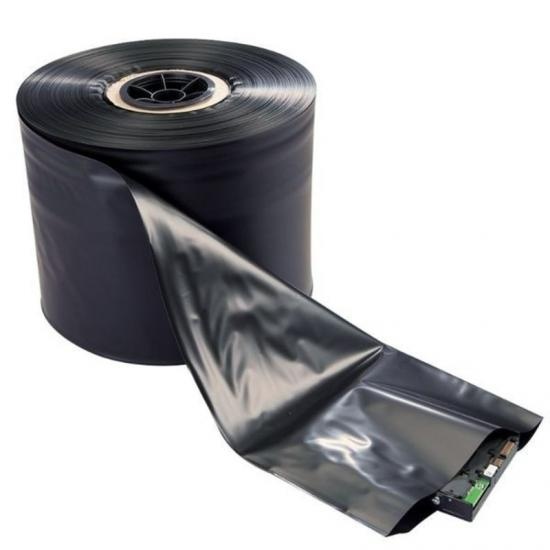

Seamless Tubing |
Continuous tube, lay-flat 50–800mm |
Automated form-fill-seal, cut-to-length bags on demand |
Technical Specifications
|
Property |
Specification |
|
Material |
Carbon-black-loaded Polyethylene (PE) |
|
Surface Resistivity |
10⁴ – 10⁸ Ω/sq (per ASTM D257) |
|
Volume Resistivity |
10² – 10⁷ Ω·cm (per ASTM D257) |
|
Static Decay Time |
< 2.0 s (5,000V → 50V, per ANSI/ESD STM 11.11) |
|
Standard Thickness |
0.05 / 0.075 / 0.1 / 0.15 / 0.2 mm (customizable up to 0.3mm) |
|
Roll Film Width |
Up to 1,000 mm (customizable) |
|
Tubing Lay-Flat Width |
50–800 mm (customizable) |
|
Color |
Black Opaque (printable surface) |
|
Thickness Tolerance |
± 10% (per ASTM D374) |
|
Tensile Strength (MD/TD) |
≥ 12 MPa (per ASTM D882) |
|
Elongation at Break (MD/TD) |
≥ 200% (per ASTM D882) |
|
Dart Impact Resistance |
≥ 80 g (per ASTM D1709, Method A) |
|
Heat Seal Temperature |
130°C – 170°C |
|
Operating Temperature |
-20°C to +70°C |
|
Printing |
ESD warning symbol, company logo, custom text (optional) |
|
Humidity Dependence |
None — permanent conductive performance |
Available Resistivity Grades
|
Grade |
Surface Resistivity |
Standard Reference |
Best For |
|
Conductive Grade 导电级 |
10⁴ – 10⁵ Ω/sq |
< 1×10⁵ Ω/sq per ANSI/ESD S541 |
Rapid charge dissipation, direct grounding applications |
|
Static Dissipative Grade 静电耗散级 |
10⁵ – 10⁸ Ω/sq |
1×10⁵ – 1×10¹¹ Ω/sq per ANSI/ESD S541 |
Controlled discharge, sensitive component protection |
Key Features
• Permanent ESD protection — Carbon black is embedded in the PE matrix; conductivity does not degrade over time or with handling
• Humidity independent — Consistent performance from 10% to 90% RH; no moisture required for charge dissipation
• Precisely controlled resistivity — 10⁴–10⁸ Ω/sq covers both conductive and static dissipative grades within the stable production plateau
• Versatile form factors — Roll film (single/double-wound) and seamless tubing for automated or manual packaging
• Custom dimensions — Width up to 1,000mm, thickness 0.05–0.3mm, all to your specification
• Heat-sealable — Compatible with standard impulse and constant-heat sealers (130–170°C)
• Printable surface — ESD warning symbols, part numbers, barcodes, and custom branding
• Compliant — ANSI/ESD S541, IEC 61340-5-3, MIL-PRF-81705, ASTM D257, RoHS, REACH
Applications
• Electronics packaging lines — automated bag-making from tubing
• Die-cutting for custom liners, spacers, and interleaving sheets
• Wafer separator sheets for semiconductor transport
• Tray and box liners for IC trays, JEDEC trays

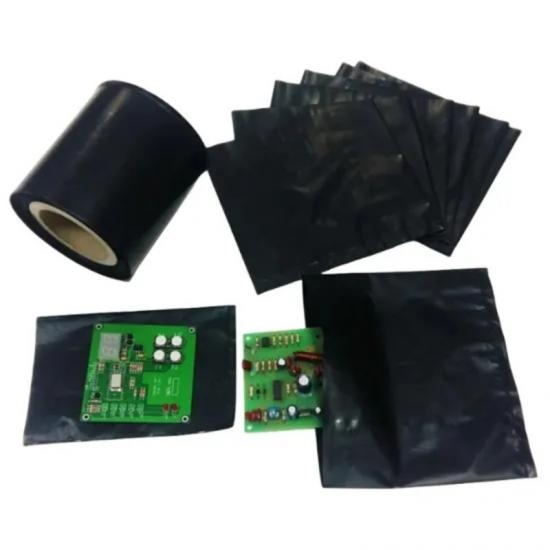

• PCB board wrapping and cable harness protection
• SMT reel and component packaging
• Field service kits and MRO component storage
Call to Action
Need a custom width, thickness, or resistivity grade? Contact us with your specifications — we’ll send samples.
