Anti-static rubber common specifications
Specifications |
|||
No. |
Item |
Standard |
Value |
1 |
Anti static layer |
Surface resistance≦108Ω |
≦108Ω |
|
|
Friction Electrostatic Potential≦100V |
≦35V |
2 |
Black conductive Layer |
Surface resistance≦106Ω |
≦105Ω |
|
|
Friction Electrostatic Potential≦100V |
≦30V |
3 |
Volume Resistance |
≦108Ω |
≦108Ω |
4 |
Static Voltage declining Period |
1000V-500V GJB3007A-2009 |
≦0.5S |
5 |
ESD Testing Environmental 72H |
Temperature |
23±2℃ |
|
|
Humidity |
12±3% |
6 |
Anti-aging test |
60℃ 80%72H |
No fading, no cracking, no hardening. |
7 |
Low temperature testing |
-10℃ 72H |
No cracking, Shore hardness of 70 degrees to 78 degrees |
8 |
Anti-UV testing |
200nm-380nm 48h |
No significant change in color |
9 |
Anti-static timeliness |
Indoor Temp.25±2℃ Humidity 50±5%(3-5years) |
No significant change in the measured value of the anti-static indicator |

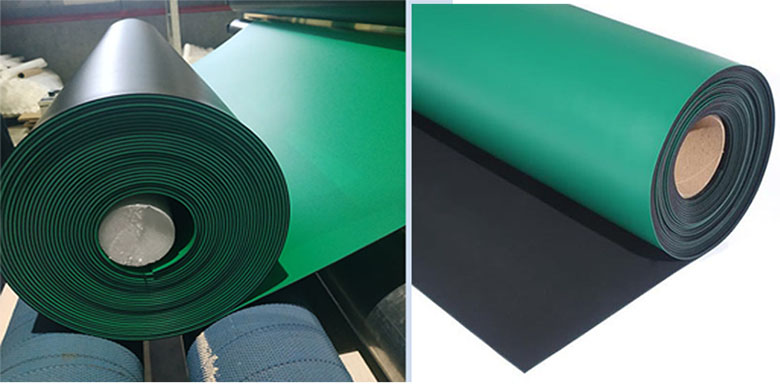

Durable Anti-static-Anti-fatigue mats are made of 2 layers:top layer is anti-static PVC/conductive rubber.
Applicable to long-standing anti-static working places,relieve feet pressure and fatigue.
Basic Features:
- It has the characteristics of abrasion resistance,pressure resistance.1:1double layer solid structure,very uniform distribution of resistance, acid and alkali resistance,high elasticity, high toughness, anti-aging,shock resistance, flame retardant and other functions.
- The appearance is green, blue, grey, relieve visual fatigue,green layer thickness 1mm,service life is twice as long as the general product , smooth surface, not easy to stick dust.
- The volume resistance less than 10^7,electrostatic discharge time is short long service life .
