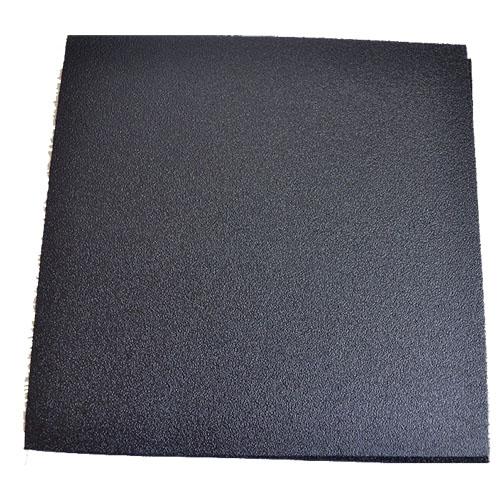

ESD PE Foam Anti Static Safe Foam Packaging Material Manufacturer

The min thickness can do 0.5-1mm, single layer up to 7mm,  and max thickness can up to 100mm by lamilation. max width 1.2 meter, supplied in sheet or roll.

ESD / Conductive PE Foam is polyethylene foam filled with carbon (ESD foams), to get electronic grade foams for ESD protection. The IXPE foam has conductive, static dissipative properties offer protection for critical electronic devices, assemblies and equipment.


  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shekou, China
Inquiry now
Product Details

ESD PE foam is produced by compounding PE with some special padding and foaming material, then cross linked by foaming. The conductivity PE foam is a hi-tech ESD product which has very good anti-static property, it is an ideal packing material for optoelectronic devices and microelectronics devices, integrated circuit, printed circuit board, communications, military products etc.

Product details
Yufa TEFA provides additional ESD and buffer protection for electrostatically sensitive electronic components to prevent physical mishandling during shipping and storage.
Yufa TEFA offers 5 different types of PE foam for applying in conjunction with its containers, boxes, trays, boards: pink static dissipative foam; conductive foam and crosslinked conductive foam. All are non-corrosive.
ESD foam is available in 0.5-100 mm thickness. The customized thickness of conductive foams are available on special orders. It is sized to fit your selected container, box, tray, boards and can be additionally custom die-cut to securely nest your product.
Yufa TEFA conductive foams are also available in full sheets. Our static dissipative foam is available in full rolls.

Features

  1. With conduction path / network inside. Excellent anti static performance.
  2. It promotes the rapid release of electrostatic without using the environmental humidity. Anti-static performance is not affected by the environmental humidity.
  3. Permanent anti-static.
  4. Excellent electrical conductivity, surface resistance: 10^6-10^9Ω/sq.
  5. Buffer good performance: independent and fine pore closure.
  6. High temperature resistance: IXPE maximum temperature 120 degree.
  7. Chemical resistance: resistant to organic solvents, acids, bases, etc.
  8. No chemical corrosion: It has no corrosion to the components and packaging.
  9. Heat insulation, sound insulation, water absorption, moisture.
  10. Good processing performance, easy molding.


Different Foam Shapes Pictures




ESD Pink Foam Sheet

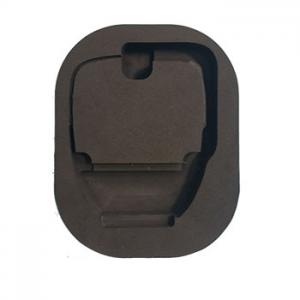

ESD PE Foam Insert

ESD Pink Foam Insert

ESD EVA Foam

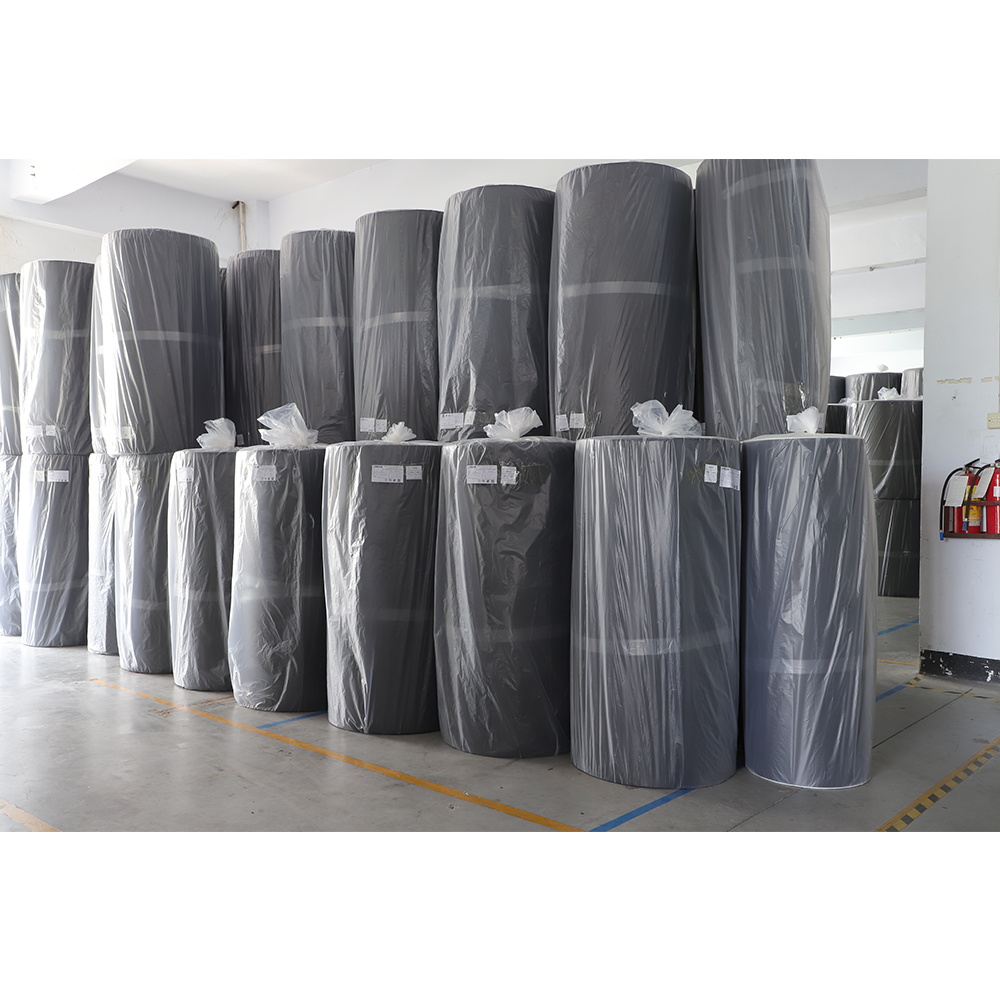

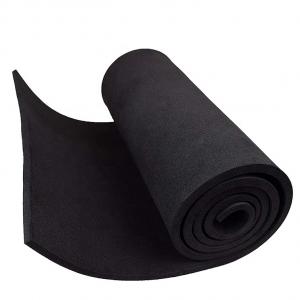

ESD Foam Roll

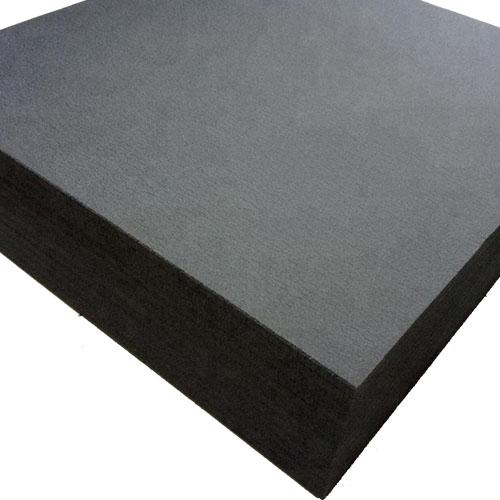

ESD Foam Sheet

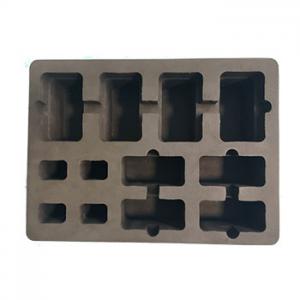

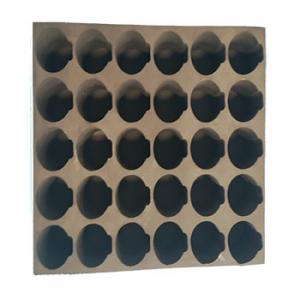

ESD Foam Insert

ESD Foam Box



Material Specification

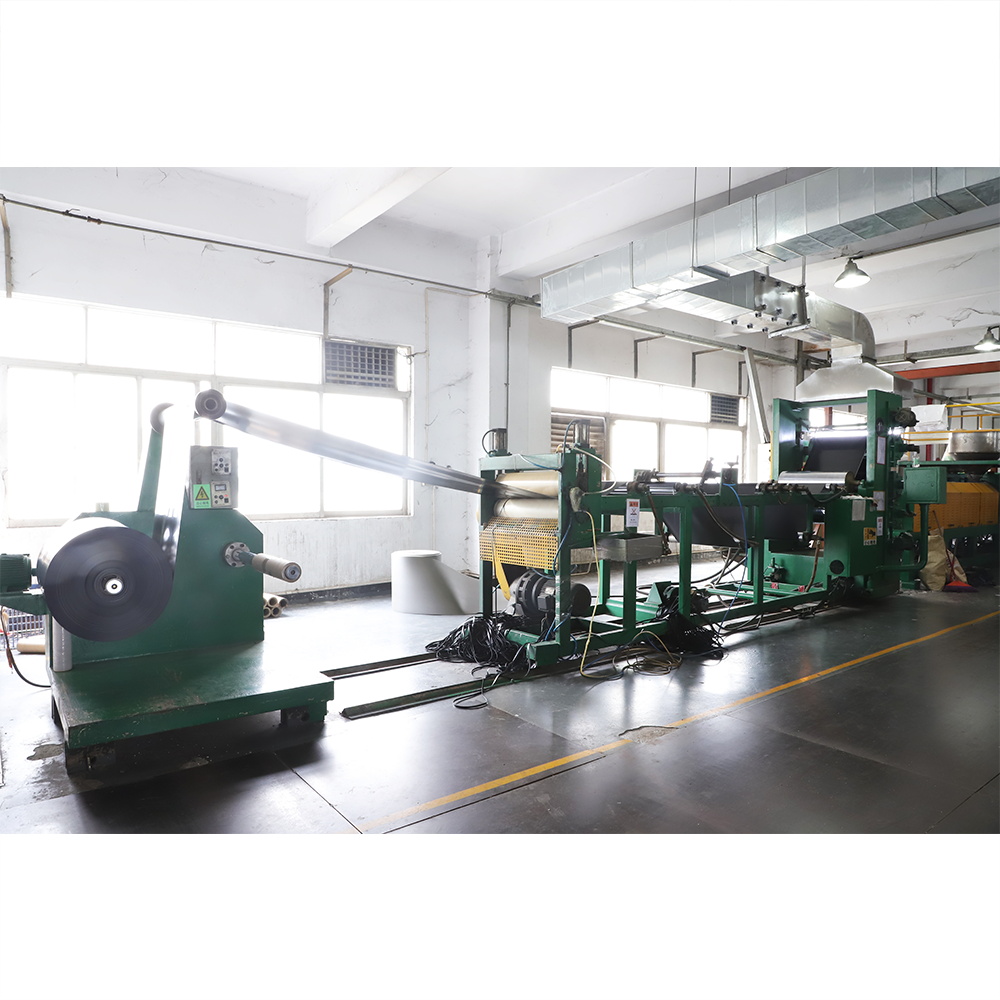

1. Basic Process

The said product is a close-cell, conductive foam. It is produced by compounding the PE resin with conductive fillers & blowing agents to extrude certain sheets,then cross-linking and foaming.

The basic process can be summarized to the following:

1.1 Pellitizing master batch by compounding PE resin with carbon black and AC foaming agents.
1.2 Extrude the said batch to make certain sheets with different thickness & width.
1.3 Cross link the said sheets under electric beam.

1.4 Make the cross linked sheets foam in foaming furnace.

2. Dimensions
2.1 Single Layer, 0.5-7mm thick.

2.2 Special thickness such as 40mm, 30mm, 25mm, 20mm, 15mm and 10mm can be lamilated.

2.3 Small length, width and profile products are to be ordered.


3.Characteristics


  •  Excellent ESD effect because its interior conductive lattice.
  •  Able to leaking static electricity rapidly and free of environmental humidity.
  •  Long time and even Permanent ESD duration (at least 3 years).

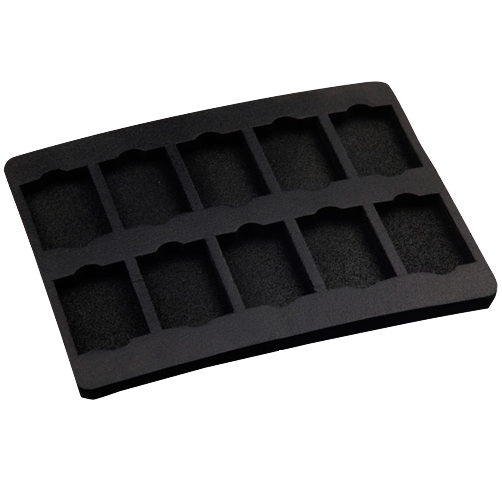

  • Conductive PE Foam Tray

Conductive IXPE Foam


The conductive IXPE foam can be processed according to customer requirement. It’s widely used for general electronic components packaging and its anti-static performance won’t changed even second processing.
Conductive polyethylene (PE) foam are widely use in packing of ESD sensitive components.

It’s non-corrosive and provides a good cushion for the part to be transferred.

Yufa TEFA has expanded polyethylene foam manufacturing process, also has its own factories to custom the design for any special requirement.


Characteristics:



  •  Excellent ESD effect because its interior conductive lattice.
  •  Able to discharge electronics rapidly and independent to environmental humidity.
  •  Excellent conductive effect: resistivity value 103—106 Ω/sq.
  •  Chemical corrosion-resistant: resistant to organic.
  •  Non-chemical corrosion: Free chemical corrosion to the electronic devices and the packing materials.



Features:


  1.  Good impact absorption
  2.  Extremely low odour
  3.  Non toxic
  4.  Lightweight
  5.  Carbon and Polyethylene
  6.  Good cushioning



Application:


  • Strips and gaskets in assembly operations-gaskets in electric, mainly used as insulated liner of metal or plastic hanger for Liquid Crystal Display (LCD) assembly.
  • Duct seals and sound dampening pads.
  • Seal and gasket for package.



Transportation

    • All available shipping ways could be applied, by courier, air or sea.

    • Appointed shipping company or our own forwarders all could be used in Shipment.
    • Full-way tracking the cargos for you before the goods arrive.

Our Services
1. Quick reply: Your inquiry  and email will be replied in 12 hours, normally a lot sooner
2 .Professional staffs: We answer your enquires in fluent English with detail info
3. OEM& ODM :any your customized items we can help you to design and put into products
4. Products update:the ability of regular develop new product can help you enlarge your market
5. Sales service: we will go through all the problem with you during production, shipping , after sales service
6. We sincerely hope to cooperate with more customers for mutual development and benefits.


Our Certificates




Our Profile:

Established in 2002, Yufa TEFA CO.,LTD(Yufa) is a leading manufacturer and exporter of various ESD&Cleanroom products, offers a full line of ESD&Clean Room equipment and supplies,providing comprehensive services by manufacturing , sourcing and exporting products from China.
